What is the Sand Molding Process and How Does It Work?

The sand molding process is a vital technique in the casting industry. It uses sand to create molds for metal parts. This method has been around for centuries, evolving in response to technological advancements.

In this process, fine sand is mixed with a binder, forming a compact mold. This mold captures intricate details, making it suitable for various applications. The flexibility of sand allows manufacturers to produce complex shapes efficiently. However, achieving the right consistency can be challenging. Variations in sand quality can affect mold strength.

Understanding the sand molding process is essential for anyone in manufacturing. Mistakes can lead to defects in the final product. Reflecting on the process reveals both strengths and weaknesses. Mastering this technique requires practice and patience. The journey is as important as the end result.

Overview of the Sand Molding Process

The sand molding process is a key technique in metal casting. It involves creating molds from sand mixtures. These molds are used to shape molten metal. The process begins by compacting sand around a pattern. This pattern is often made from metal or wood. The sand must be tightly packed to ensure the mold holds its shape when the molten metal is poured in.

Despite its simplicity, the sand molding process has its challenges. Achieving the right sand consistency can be tricky. Too dry, and the mold will crumble. Too moist, and it may not hold its form. The quality of the final cast can suffer from these issues. Additionally, removing the mold after casting can damage the final product if not done carefully. Each step must be executed with precision to avoid imperfections.

Another point to consider is the environmental impact. Sand is a natural resource, but its extraction can lead to erosion. There’s also the question of waste. Used sand can pile up and require proper disposal. Manufacturers are starting to rethink their processes. Finding a balance between efficiency and sustainability is essential.

Key Materials Used in Sand Molding

The sand molding process is critical in metal casting. It primarily relies on a few key materials that ensure quality and effectiveness. The primary component is silica sand. Silica sand makes up around 90% of the molding mixture. Its fine grain helps achieve detailed patterns. This sand can withstand high temperatures, making it ideal for molten metal.

Clay is another important material used in sand molding. Typically, bentonite clay is added to improve mold strength. Reports indicate that clay content should be about 5-10% of the mold mix. This mixture enhances cohesion and improves the mold's resistance to deformation. Water is also vital. The moisture content in the sand mixture typically ranges from 2-5%. This balance is crucial. Too much water can make the mold weak, while too little can cause cracks.

Additives like starch or resin might be included to enhance the molding process further. These additives can improve mold durability and surface finish. However, the choice of materials can vary widely. Different projects require different mixtures. Inconsistencies in material quality can lead to defects in the final casting. Industry data shows that such defects can increase costs by up to 20%. Therefore, careful selection and testing of materials are essential for successful production.

What is the Sand Molding Process and How Does It Work? - Key Materials Used in Sand Molding

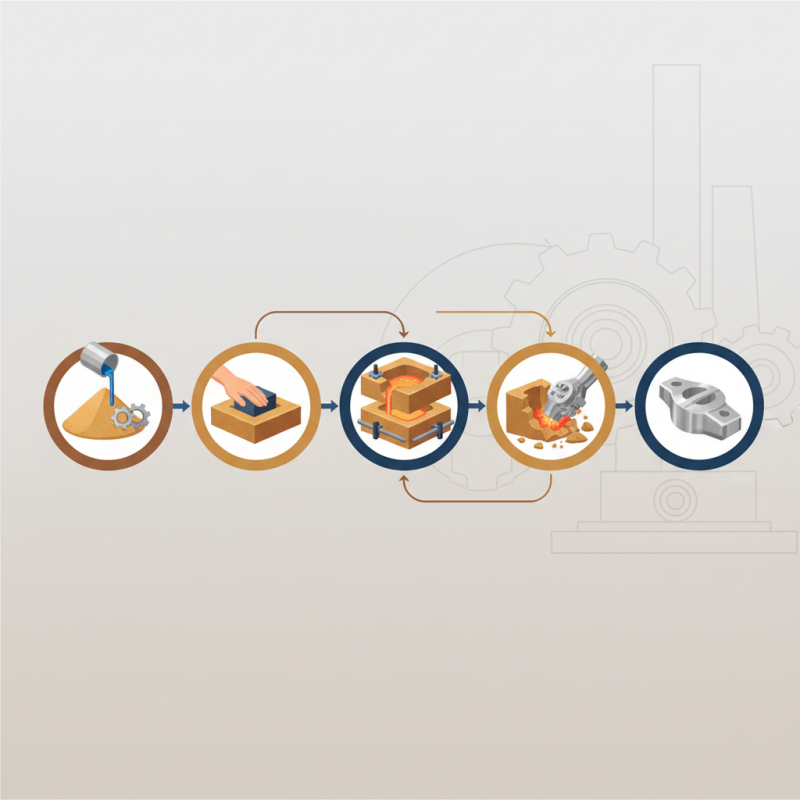

Step-by-Step Procedure of Sand Molding

The sand molding process is a crucial technique in metal casting. It involves several essential steps to ensure the desired shape and quality. The first stage is preparing the molding material. This typically includes a mixture of sand, clay, and water. The consistency must be just right. Too much moisture will weaken the mold. Too little makes it hard to form.

Next, the mold is created. The pattern is pressed into the sand mixture, forming a cavity. This step requires precision. If the pattern is not perfectly aligned, the final product may be flawed. After the mold is prepared, it needs to be packed tightly. Some operators forget this aspect, leading to defects.

Once the mold is ready, molten metal is poured in. Timing is critical here. If the metal cools too quickly, it can create weak spots. In contrast, if it is poured too slowly, it may not fill the mold completely. Each step in the process requires careful attention. Any small error can affect the final outcome. Continuous learning is essential for improvement in sand molding.

Applications and Advantages of Sand Molding

The sand molding process has various applications across industries. It is often used in metal casting to create complex shapes. The flexibility of sand molds allows for intricate designs, making it ideal for automotive and aerospace components. In fact, according to a report by ResearchAndMarkets, the global sand castings market is projected to reach $30 billion by 2026, growing at a CAGR of around 5%.

One notable advantage of sand molding is its cost-effectiveness. The materials used are generally inexpensive. This process can accommodate high-volume production while keeping costs low. Additionally, quick turnaround times are possible. However, some drawbacks exist. The surface finish may not be as smooth as other methods, requiring additional finishing processes. Another limitation is the ability to reproduce highly complex geometries consistently.

Despite challenges, the benefits of sand molding make it a popular choice. The process enables manufacturers to produce parts efficiently and economically. Companies appreciate its adaptability. They can modify designs with relative ease. As industries continue to innovate, sand molding remains a relevant and valuable technique in manufacturing.

Common Challenges and Solutions in Sand Molding

Sand molding is a widely used technique in metal casting. However, it comes with challenges that can affect the quality of the final product. Sand quality is one major concern. Using low-grade sand can lead to weak molds. This often results in defects in castings. The solution lies in selecting high-quality sand and maintaining it properly. Regular testing can help identify issues before they impact production.

Another common issue is moisture control. Too much moisture in the sand mixture creates steam during the pouring process. This can lead to blowholes or surface defects. On the flip side, too little moisture can make the mold crumble. To solve this, controlling humidity levels is essential. Employing precise mixing techniques can ensure the right moisture content is achieved.

Finally, the molding process itself can be tiring. Workers may face fatigue, affecting their precision. Mechanical aids can help, even though they require initial investment. Training staff effectively also reduces errors. Recognizing these challenges is vital. It paves the way for improvement and innovation in sand molding processes.
