Flush Wood:
Thin layers of wood applied to base for real-wood appearance, structural composite lumber core (SCLC)

Aluminum Stile and Rail with Glass:
Aluminum door leafs with horizontal rails and vertical stiles and glass in between

Hollow Metal:
Reinforced steel sheets filled with insulation materials

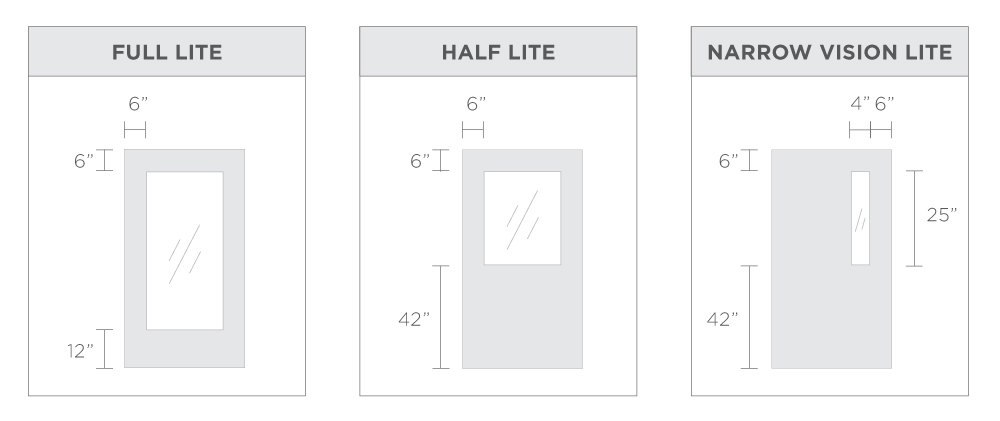

Glass Options:

Palladium/Acrovyn:
Flush wood doors combined with rigid vinyl

Door Measurement Width

Clear Open Width	Door Slab Width	Finished Frame Width	Track Width	Rough Opening Width
26	34	31	63	32.5
26.5	34.5	31.5	64	33
27	35	32	65	33.5
27.5	35.5	32.5	66	34
28	36	33	67	34.5
28.5	36.5	33.5	68	35
29	37	34	69	35.5
29.5	37.5	34.5	70	36
30	38	35	71	36.5
30.5	38.5	35.5	72	37
31	39	36	73	37.5
31.5	39.5	36.5	74	38
32	40	37	75	38.5
32.5	40.5	37.5	76	39
33	41	38	77	39.5
33.5	41.5	38.5	78	40
34	42	39	79	40.5
34.5	42.5	39.5	80	41
35	43	40	81	41.5
35.5	43.5	40.5	82	42
36	44	41	83	42.5
36.5	44.5	41.5	84	43
37	45	42	85	43.5
37.5	45.5	42.5	86	44
38	46	43	87	44.5
38.5	46.5	43.5	88	45
39	47	44	89	45.5
39.5	47.5	44.5	90	46
40	48	45	91	46.5
40.5	48.5	45.5	92	47
41	49	46	93	47.5
41.5	49.5	46.5	94	48
*42	*48	*46.5	*95	*48
42	50	47	95	48.5
42.5	50.5	47.5	96	49
43	51	48	97	49.5
43.5	51.5	48.5	98	50
44	52	49	99	50.5
44.5	52.5	49.5	100	51
45	53	50	101	51.5
45.5	53.5	50.5	102	52
46	54	51	103	52.5
46.5	54.5	51.5	104	53
47	55	52	105	53.5
47.5	55.5	52.5	106	54
48	56	53	107	54.5
48.5	56.5	53.5	108	55
49	57	54	109	55.5
49.5	57.5	54.5	110	56
50	58	55	111	56.5
50.5	58.5	55.5	112	57
51	59	56	113	57.5
51.5	59.5	56.5	114	58
52	60	57	115	58.5

Clear Open Height	Door Slab Height	Finished Frame Height	Rough Opening
80	80	80	81
80.5	80.5	80.5	81.5
81	81	81	82
81.5	81.5	81.5	82.5
82	82	82	83
82.5	82.5	82.5	83.5
83	83	83	84
83.5	83.5	83.5	84.5
84	84	84	85
84.5	84.5	84.5	85.5
85	85	85	86
85.5	85.5	85.5	86.5
86	86	86	87
86.5	86.5	86.5	87.5
87	87	87	88
87.5	87.5	87.5	88.5
88	88	88	89
88.5	88.5	88.5	89.5
89	89	89	90
89.5	89.5	89.5	90.5
90	90	90	91
90.5	90.5	90.5	91.5
91	91	91	92
91.5	91.5	91.5	92.5
92	92	92	93
92.5	92.5	92.5	93.5
93	93	93	94
93.5	93.5	93.5	94.5
94	94	94	95
94.5	94.5	94.5	95.5
95	95	95	96
95.5	95.5	95.5	96.5
96	96	96	97
96.5	96.5	96.5	97.5
97	97	97	98
97.5	97.5	97.5	98.5
98	98	98	99
98.5	98.5	98.5	99.5
99	99	99	100
99.5	99.5	99.5	100.5
100	100	100	101
100.5	100.5	100.5	101.5
101	101	101	102
101.5	101.5	101.5	102.5
102	102	102	103
102.5	102.5	102.5	103.5
103	103	103	104
103.5	103.5	103.5	104.5
104	104	104	105
104.5	104.5	104.5	105.5
105	105	105	106
105.5	105.5	105.5	106.5
106	106	106	107
106.5	106.5	106.5	107.5
107	107	107	108
107.5	107.5	107.5	108.5
108	108	108	109
